Smartphone EnaBluetooth Smart –
ES201US
2.4GHz Wireless Remote Mains Socket Switch

+ 2.4GHz Wireless Remote Key Fob





iPhone Bluetooth Smart Power ON/OFF DEMO(Energy Saving)




General Description

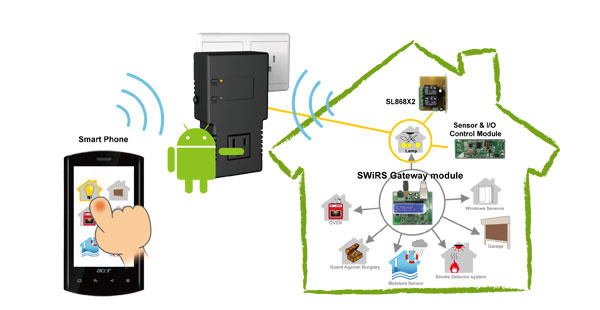

ES201US is a new era & technology product which can link to the SmartPhone (including iPhone, Android Phone and all the other smart phones) and local network to let you easily access and control the electrical appliances in the remote site. ES201US itself is a low power and high performance of 2.4GHz ISM band wireless mains socket switch which is operated by the 2.4GHz wireless remote key fob. Together with SWiRAS Gateway and application software, ES201US can also be accessed by the commands sent from a SmartPhone. This even makes ES201US easy to be controlled by a SmartPhone in the remote site.

Thus, ES201US can widely be applied into home automation, light control, fan control and all the other electrical appliances which can be operated in the remote site.



2.4GHz Wireless Remote Mains Socket Switch + 2.4GHz Wireless Remote Key Fob



Applications

  • Standby power saving
  • Home automation
  • Direct replacement for current mains socket switch because of being controlled by wireless remote key fob and SmartPhone
  • Switch On/Off light, fan and all the other electric appliances by wireless remote key fob and SmartPhone.



Features

  • Totally turn off standby power.
  • No plug-in and unplug inconvenience for saving standby power
  • Operating frequency: 2400MHz ~ 2483.5 MHz ISM Band
  • Standby power consumption: 0.25W @AC110V
  • Easily control mains On/Off by wireless remote control key fob or SmartPhone.
  • Application ranging from simple domestic remote control to autonomous control
  • Extremely easy to set-up and operate
  • SwiRAS (Smart Wireless Remote Access Solution) compatiBluetooth Smart device
  • Direct wireless connectivity to SWiRAS gateway & remote key fob



Specification

Type

  • 2.4GHz Wireless Mains Switch Module
  • 2.4GHz Wireless Remote Key Fob

Color

  • Black (2.4GHz Wireless Remote Key Fob)

Operating
Voltage

  • AC110V/AC220V 60Hz/50Hz (2.4GHz Wireless Mains Socket Switch);
  • DC 1.5V (2.4GHz Wireless Remote Key Fob)

Standby Power

  • 0.25W @110Vac

Transmission
Frequency

  • 2400 ~ 2480MHz (2.4GHz Wireless Mains Socket Switch);
  • 2400 ~ 2480MHz (2.4GHz Wireless Remote Key Fob)

Power Rating

  • AC 110 Volt 15 Amp 1,650 Watts
  • AC 240 Volt 7 Amp 1,680 Watts

Local Interface

  • Power On/Off Button + Indicator LED
  • Learn Button + Indicator LED

Remote
Interface

  • 2.4GHz Wireless Remote Key Fob;
  • 2.4GHz Wireless Ethernet Control Hub (SwiRAS Gateway) (Option)
  • SmartPhone (Android Phone, iPhone , PDA, …etc) & PC

Encoding Type

  • Learning Code between Mains Socket Switch and Remote Key Fob





Typical Software Applications
Android Application control program availaBluetooth Smart
