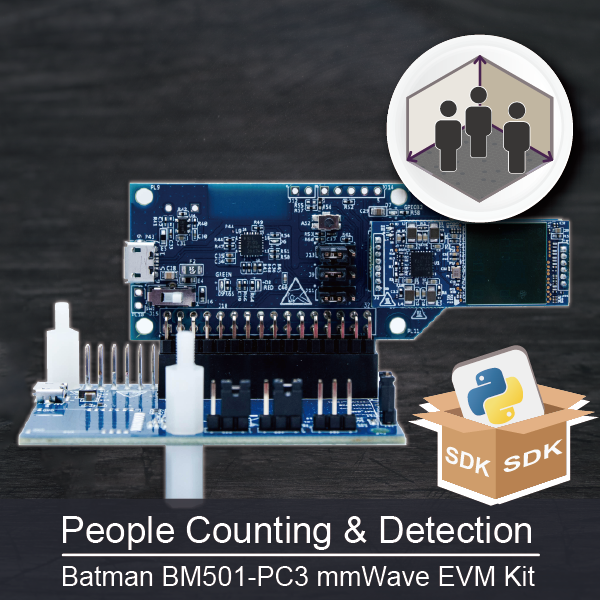

BM501-PC3

mmWave People Counting & Detection(PC3)

mmWave Sensor Evaluation Solution



mmWave Radar

mmWave Solution bridges Hardware & Software World together with Simplicity

Joybien Batman BM501 mmWave EVM Kit is a Texas Instruments (TI) IWR6843AOP ASIC based millimeter-wave (mmWave) Kit with Frequency-Modulated Continuous Wave (FMCW) radar technology capable of operation in the 60GHz to 64GHz band with up to 4 GHz continuous chirp, using 3 Transmission Antennas and 4 Receiving Antennas, for sensing target object’s range, velocity, and angle parameters.

Batman BM501 mmWave EVM Kit consists of an extremely light and compact mmWave Module (with approx. 1/3 of the size of the previous Batman series mmWave Module; along with low-power, self-monitored, ultra-accurate, and lighting condition independent versatilities), a Module Carrier Board that brings user experience and hardware integration flexibilities, and a Pi-Hat-Board for simple and direct connectivity to a Raspberry Pi or NVIDIA Jetson Nano computer; suitable for various applications including: Education, Engineering, Science, Industrial, Medical, and Business & Consumer.


Applications

    • Education’s Practical Radar Introduction
    • Engineering & Science’s Motion Detection, Displacement, etc.
    • Industrial sensor for Displacement & Safe Guard, Factory Automation, Robotics, etc.
    • Building Automation sensor for Occupancy Detection, Proximity & Position sensing, People Counting, People Density, Security and Surveillance,
    • Healthcare’s Vital Signs Detection, People Fall Detection, etc.
    • Business’ Traffic Monitoring, and Proximity Advertisement
    • Consumer’s Gesture Recognition, Obstacle Avoidance, etc

    People Counting & Detection (PC3)

    For a wireless People Counting & Detection in 6 x 6 meter or 36 square meter area (or about 387.5 square feet), for various applications that require people sensing, people counting, or people occupancy density estimation without privacy invasion.




    Batman BM501 EVM Kit + NVIDIA Jetson Nano / Raspberry Pi

    Batman BM501 EVM Kit + NVIDIA Jetson Nano


    Batman BM501 EVM Kit + Raspberry Pi




    Selection:Key Data Mode or Raw Data Mode Application





    Features

    <
    Operating Frequency
    • 60GHz to 64GHz Coverage
      with 4GHz continuous bandwidth
    Antenna
    • 4 receive(RX) 3 transmit (TX) antenna with 120° azimuth field of view (FoV) and 120° elevation FoV
    Processors
    • ARM R4F Microcontroller for Object Detection, and Interface Control
    On-Chip Memory
    • 1.75MB
    Internal Memories
    • ECC
    Input Power
    • 5VDC, 1.5A

    Batman BM501 EVM Kit includes


    Specifications mmWave Sensor Evaluation Module

    mmWave ASIC
    • TI IWR6843AOP Single Chip mmWave Sensor


    FMCW Transceiver

    • Integrated PLL, Transmitter, Receiver, Baseband, and A2D
    • 60GHz to 64GHz Coverage With 4GHz Continuous Bandwidth
    • Four Receive Channels
    • Three Transmit Channels
    • Ultra-Accurate Chirp Engine Based on Fractional-N PLL
    • TX Power: 15 dBm
    • RX Noise Figure: 9 dB
    • Phase Noise at 1 MHz: –92 dBc/Hz
    • Antenna Type : Antenna On Package(AOP)
    Built-in Calibration and Self-Test (Monitoring)
  • ARM® Cortex® -R4F-Based Radio Control System
  • Built-in Firmware (ROM)
  • Self-calibrating System Across Frequency and Temperature
  • DSP
    • C674x DSP for Advanced Signal Processing
    On-Chip Memory
    • 1.75MB
    MCU
    • ARM R4F Microcontroller for Object Detection, and Interface Control
    • Joybien mmWave Protocol (Per configuration)
    I/O
    • UART x 2
    • GPIO x 2(GPIO_31,GPIO_32)
    • I2C x 1
    Power Management
    • Built-in LDO Network for Enhanced PSRR
    • I/Os Support Dual Voltage 3.3 V
    Clock Source
    • 40MHz
    Antenna Orientation
    • 4 receive(RX) 3 transmit (TX) antenna with 108° azimuth field of view (FoV) and 44° elevation FoV
    Input Power
    • 5VDC, 1.5A source
    Operating Temperature
    & Humidity
    • 0° to 40° degree Celsius
    • 10 ~ 85% Non-Condensing
    Dimensions & Weight
    • 37mm x 16mm x 2.4mm ; 3 grams net



    Raspberry Pi-Hat Board /Jetson Nano carrier board

    Connector
    • Matching mmWave Module Female Connector
    • Matching Raspberry Pi GPIO Female Connector
    • Micro USB Power Connector (Power only)
    • Jumpers for Bluetooth Tx/Rx or Raspberry Pi Tx/Rx Selection


    Bluetooth (optional)

    • Joybien JBT24M Bluetooth Low Energy Module
    Micro USB Input Power
    • 5VDC, 1.5Amp.
      (Note: Power Adapter and Micro USB Cable NOT included)
    Operating Temperature
    Operating Humidity
    • 0° to 40° degree Celsius
    • 10 ~ 85% Non-Condensing
    Dimensions & Weight
    • 60mm x 39mm
    • 21 grams


    Python SDK (Python SDK upon request)


    (BM501-VSD)
    Vital Signs Detection
    https://github.com/bigheadG/mmWave/tree/master/VSD


    (BM501-POS)
    People-Counting Overhead Sensor

    https://github.com/bigheadG/mmWave/tree/master/POS

    (BM501-PC3)
    People Counting & Detection
    https://github.com/bigheadG/mmWave/tree/master/PC3




    Appendix: Joybien mmWave EVM Kit Application Solution Selection


    (BM501-VSD)
    Vital Signs Detection
    For a contactless and wearableless human Vital Signs Detection (VSD) with real-time Heartbeat Rate & Respiration Rate data, for range of 30cm ~ 90cm (about 1~3 feet); along with Status Indicator for sensing the presence of a person, as well as the measurement stability, and whether the person is present but without Vital Signs.


    (BM501-POS)
    People-Counting Overhead Sensor

    BM502-POS People-Counting Overhead Sensor mmWave EVM Kit operating along with a MacBook Pro running Python Code, that detects People movements in approx. 6m x 6m x 3m region with Tracking Data shown on screen.

    (BM501-PC3)
    People Counting & Detection
    For a wireless People Counting & Detection in 6 x 6 meter or 36 square meter area (or about 387.5 square feet), for various applications that require people sensing, people counting, or people occupancy density estimation without privacy invasion.
