mmWave Solution bridges Hardware & Software World together with Simplicity
Joybien Batman BM201 mmWave EVM Kit is a Texas Instruments (TI) IWR6843 ASIC based millimeter-wave (mmWave) Kit with Frequency-Modulated Continuous Wave (FMCW) radar technology capable of operation in the 60GHz to 64GHz band with up to 4 GHz continuous chirp, using 3 Transmission Antennas and 4 Receiving Antennas, for sensing target object’s range, velocity, and angle parameters.
Batman BM201 mmWave EVM Kit is with a small and compact mmWave Module (with low-power, self-monitored, ultra-accurate, and lighting condition independent versatilities), along with a Pi-Hat Board for simple and direct connectivity to a Raspberry Pi or NVIDIA Jetson Nano computer, suitable for various applications including: Education, Engineering, Science, Industrial, Medical, and Business & Consumer.
Applications
- Education’s Practical Radar Introduction
- Engineering & Science’s Motion Detection, Displacement, etc.
- Industrial sensor for Displacement & Safe Guard, Factory Automation, Robotics, etc.
- Building Automation sensor for Occupancy Detection, Proximity & Position sensing, People Counting, Security and Surveillance
- Business’ Traffic Monitoring, and Proximity Advertisement

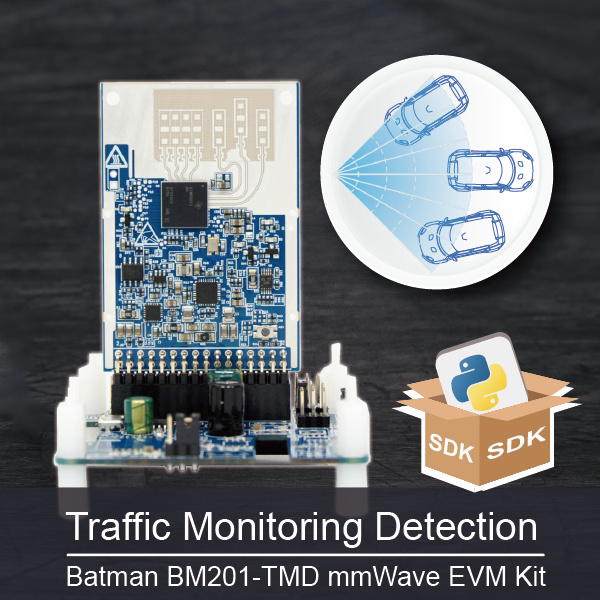

Traffic Monitoring Detection (TMD)
For detecting moving objects (such as vehicles) in 5m ~ 50m with FOV of approx. +/- 54 degrees with Position X&Y, Velocity X&Y info. And based on the detected data, a programmer may write a program to define virtual Zones, for mapping objects (vehicles) moving in and out of certain Zones for traffic monitoring applications.
Batman BM201 EVM Kit + NVIDIA Jetson Nano / Raspberry Pi
Batman BM201 EVM Kit + NVIDIA Jetson Nano
Batman BM201 EVM Kit + Raspberry Pi
Selection：Key Data Mode or Raw Data Mode Application
Features
| Operating Frequency |
- 60GHz to 64GHz Coverage
with 4GHz continuous bandwidth
|
| Antenna |
3 Tx and 4 Rx Antennas on Module, with:
TX Power: 12 dBm
RX Noise Figure: 12 dB
Phase Noise at 1 MHz: –93 dBc/Hz |
| Processors |
ARM R4F based MCU and C674x DSP
for advanced signal processing
|
| On-Chip Memory |
|
| Internal Memories |
|
| Input Power |
|
|

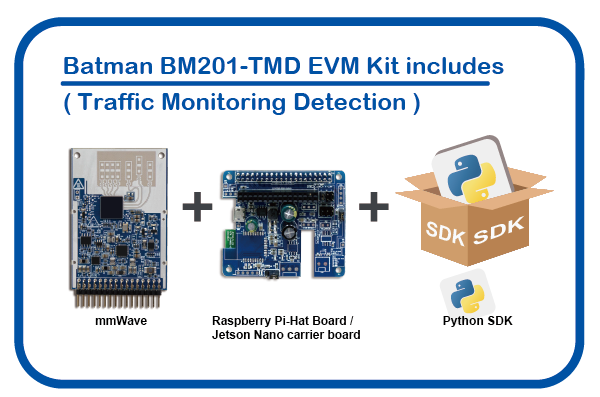

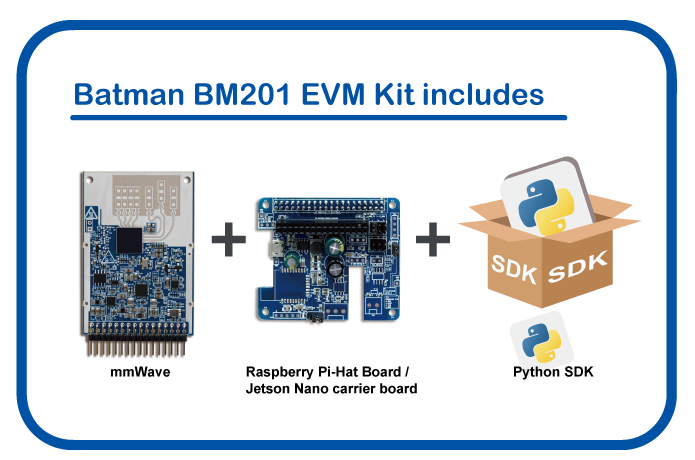

Batman BM201-TMD EVM Kit includes
Specifications mmWave Sensor Evaluation Module
| mmWave ASIC |
- TI IWR6843 Single Chip mmWave Sensor
|
|
- Integrated PLL, Transmitter, Receiver, Baseband, and A2D
- 60GHz to 64GHz Coverage With 4GHz Continuous Bandwidth
- Four Receive Channels
- Three Transmit Channels
- Ultra-Accurate Chirp Engine Based on Fractional-N PLL
- TX Power: 12 dBm
- RX Noise Figure: 12 dB
- Phase Noise at 1 MHz: –93 dBc/Hz
- Antenna Type : ISK Antenna
|
| Built-in Calibration and Self-Test (Monitoring) |
- ARM® Cortex® -R4F-Based Radio Control System
- Built-in Firmware (ROM)
- Self-calibrating System Across Frequency and Temperature
|
| DSP |
- C674x DSP for Advanced Signal Processing
|
| On-Chip Memory |
|
| MCU |
- ARM R4F Microcontroller for Object Detection, and Interface Control
- Joybien mmWave Protocol (Per configuration)
|
| I/O |
- Up to 6 ADC Channels (low sample rate monitoring)
- Up to 2 SPI Ports
- Up to 2 UARTs
- I2C – GPIOs
|
| Power Management |
- Built-in LDO Network for Enhanced PSRR
- I/Os Support Dual Voltage 3.3 V/1.8 V
|
| Clock Source |
|
| Antenna Orientation |
- 4 receive(RX) 3 transmit (TX) antenna with 108° azimuth field of view (FoV)
and 44° elevation FoV
|
| Input Power |
|
Operating Temperature
& Humidity |
- 0° to 40° degree Celsius
- 10 ~ 85% Non-Condensing
|
| Dimensions & Weight |
- 67mm x 46mm x 2mm ; 15 grams net
|
|
Raspberry Pi-Hat Board /Jetson Nano carrier board
| Connector |
- Matching mmWave Module Female Connector
- Matching Raspberry Pi GPIO Female Connector
- Micro USB Power Connector
- Jumpers for Bluetooth Tx/Rx or Raspberry Pi Tx/Rx Selection
- Jumper for mmWave Raw Data or Key Data Selection
|
|
Joybien JBT24M Bluetooth Low Energy Module |
| Micro USB Input Power |
5VDC, 2.1Amp.
(Note: Power Adapter and Micro USB Cable NOT included) |
Operating Temperature
Operating Humidity |
- 0° to 40° degree Celsius
- 10 ~ 85% Non-Condensing
|
| Dimensions & Weight |
|
|
Python SDK (Python SDK upon request)
Appendix: Joybien mmWave EVM Kit Application Solution Selection
(BM201-VOD)
Zone Occupancy Detection |
For plotting a Range-Azimuth-Heatmap with a 64 x 48 Grid Matrix covering: Range of 3 meter / 64 row (approx. 0.047 meter per row) x Azimuth of 108 degree / 48 column (approx. 2.3 degree /column). Subsequently a programmer may write code to group the Grid(s) into Zone(s) for detecting whether the particular Zone(s) is occupied by Target(s); suitable for vehicle occupancy detection or for occupancy detection for an area of around 3 meter x 3 meter. |
(BM201-LPD)
Long-Range People Detection
|
For a contactless and wearableless Long-Range People Detection (LPD) of 1 meter ~ 50 meters (about 3 ~ 164 feet), for various applications that require people sensing or counting without privacy invasion. |
(BM201-PC3)
People Counting & Detection |
For a wireless People Counting & Detection in 6 x 6 meter or 36 square meter area (or about 387.5 square feet), for various applications that require people sensing, people counting, or people occupancy density estimation without privacy invasion. |
(BM201-TMD)
Traffic Monitoring Detection |
For detecting moving objects (such as vehicles) in 5m ~ 50m with FOV of approx. +/- 54 degrees with Position X&Y, Velocity X&Y info. And based on the detected data, a programmer may write a program to define virtual Zones, for mapping objects (vehicles) moving in and out of certain Zones for traffic monitoring applications. |
(BM201-VSD)
Vital Signs Detection |
For a contactless and wearableless human Vital Signs Detection (VSD) with real-time Heartbeat Rate & Respiration Rate data, for range of 30cm ~ 90cm (about 1~3 feet); along with Status Indicator for sensing the presence of a person, as well as the measurement stability, and whether the person is present but without Vital Signs. |
(BM201-HAM)
High Accuracy Measurement |
For a wireless High Accuracy Measurement (HAM) of an object distance with range of 30cm ~ 3 meters (about 1~10 feet), having millimeter measurement resolution. |
(BM201-FDS)
Fall Detection Sensing |
For wireless sensing of people-fall-detection along with people movement & tracking in 3-Dimensional region covering 6m x 6m area without privacy invasion. The sensed people behavior data are with Position X/Y/Z, Velocity X/Y/Z, and Acceleration X/Y/Z parameters suitable for people movement analysis such as standing, sitting, lying down or falling down positions. |
|
