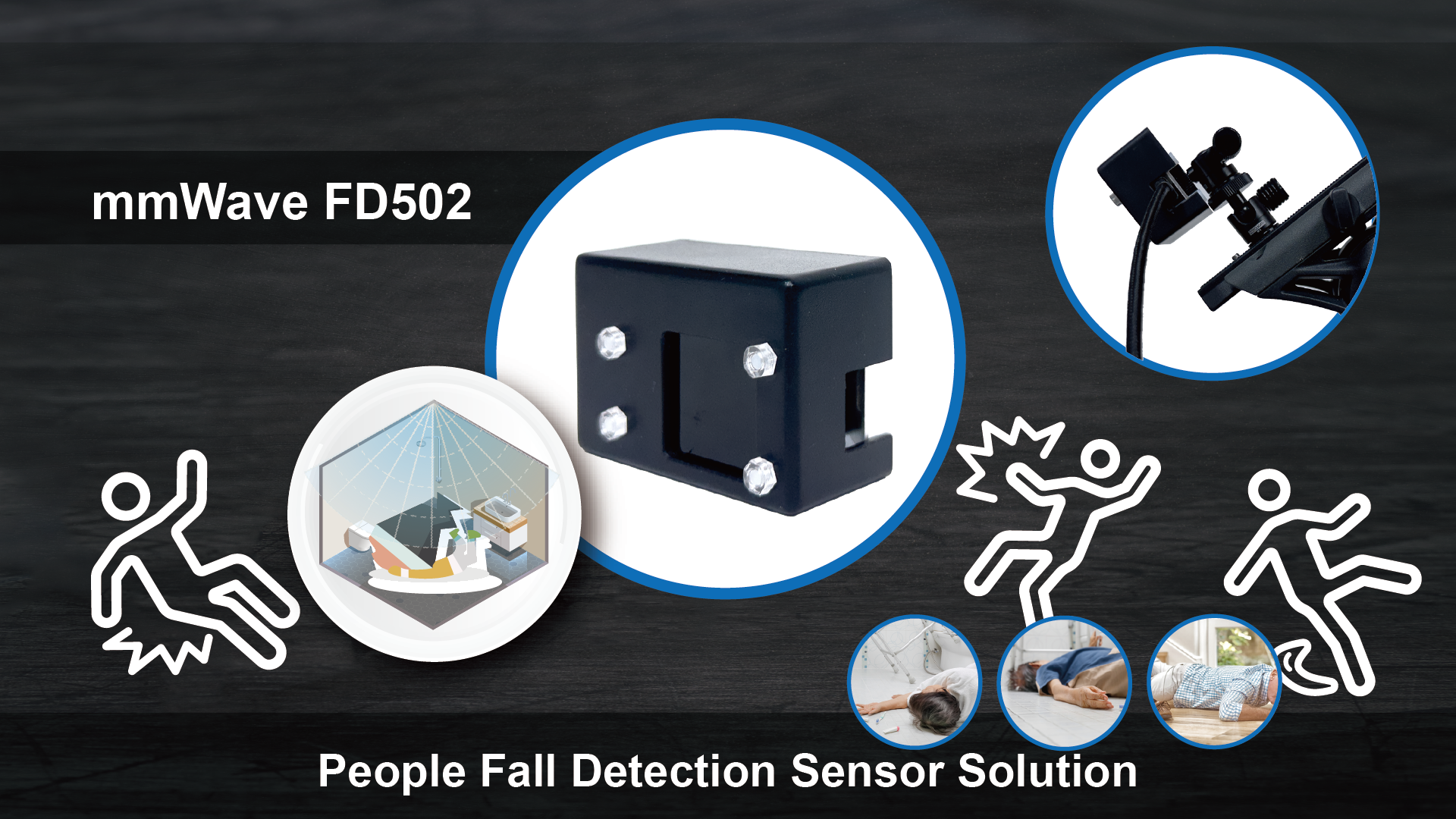

PPGard FD502 People Fall Detection Sensor Solution

The Joybien PPGard FD502 People Fall Detection Sensor Solution is an ideal companion for seniors, individuals at risk of falls, and those seeking independence. It utilizes advanced non-invasive mmWave monitoring technology, combined with highly accurate AI-enabled fall detection, to ensure safety and peace of mind. This solution when integrating with a local Cloud Server allows automatic and immediate sending of fall-alert signals to family members and caretakers, enabling immediate action that could save lives.

The PPGard FD502 People Fall Detection Sensor Solution is with elderly-friendly design with no cumbersome wearing device needed, and without seeing image of people in the detection area (thanks to the latest mmWave sensing technology) for a non-privacy invading wireless detection; and families can rest assured their loved ones are protected with peace of mind.

Key Features

• Non-invasive mmWave detection technology.
• AI-enabled fall detection with high accuracy and low false-alert rates.
• Local Cloud Server for immediate remote alert signal access.
• Simple mounting and easy installation.

Benefits

• Ideal for seniors, individuals at risk of falls, and those seeking independence.
• Non-intrusive technology that ensures privacy.
• Prompt fall-alert signals to family members or caretakers for immediate response, potentially saving lives.

Fall Detection Sensing (FDS)

For wireless sensing of people-fall-detection along with people movement & tracking in 3-Dimensional region covering 6m x 6m area without privacy invasion. The sensed people behavior data are with Position X/Y/Z, Velocity X/Y/Z, and Acceleration X/Y/Z parameters suitable for people movement analysis such as standing, sitting, lying down or falling down positions.



Installation Instructions

• Mount the PPGard FD502 sensor on a wall, aiming it at the desired detection area.
• Connect an USB-C cable to PPGard FD502 sensor and your edge computer.
• Run the accompanying software for AI computing and analysis of people behavior in the detection area.
• Optionally, set up a local MQTT Server to send fall-alert signals to remote recipients via Internet access on a computer or smartphone.

Technical Specification

Weight & Dimensions	64mm (L) x 44mm (W) x 33.5mm (H) ; 42 grams (net)
Certification	FCC/CE/NCC/mmWave (TBD)
Power Consumption	< 7.5 Watt
Detection Range	+/-60 degree FOV with 4-meter range
Power Rating	Voltage: 5VDC (Note: Do not exceed 5VDC) Current: 1.5A (Note: Do not exceed 2A)
Connection and Interface	Built-in TI IWR6843AOP 60GHz mmWave ASIC-based Sensor Module USB-C connector
Environmental Requirements	Operating Temperature: 0 ~ 40 degrees Celsius Storage Temperature: -20 ~ 60 degrees Celsius Operating Humidity: 10 ~ 85% Non-Condensing Storage Humidity: 5 ~ 90% Non-Condensing

Package Contents

• PPGard FD502 People Fall Detection Sensor
• USB-C to USB-A Cable (Optional, additional purchase required)
• Mounting Bracket (Optional, additional purchase required)
• User Manual with download instructions for AI Fall-Detection Software



Python SDK (Python SDK upon request)

(BM502-FDS) Fall Detection Sensing	https://github.com/bigheadG/mmWave/tree/master/PCT_FDS
(BM502-PCT) People Counting Tilt-Sensing	https://github.com/bigheadG/mmWave/tree/master/PCT_FDS
(BM502-VSD) Vital Signs Detection	https://github.com/bigheadG/mmWave/tree/master/VSD
(BM502-POS) People-Counting Overhead Sensor	https://github.com/bigheadG/mmWave/tree/master/POS
(BM502-PC3) People Counting & Detection	https://github.com/bigheadG/mmWave/tree/master/PC3





Appendix: Joybien mmWave EVM Kit Application Solution Selection

(BM502-FDS) Fall Detection Sensing	For wireless sensing of people-fall-detection along with people movement & tracking in 3-Dimensional region covering 6m x 6m area without privacy invasion. The sensed people behavior data are with Position X/Y/Z, Velocity X/Y/Z, and Acceleration X/Y/Z parameters suitable for people movement analysis such as standing, sitting, lying down or falling down positions.
(BM502-PCT) People Counting Tilt-Sensing	For mmWave wireless People Counting Tilt-Sensing in 4.5 x 4.5m x 3m region, for various applications that require people sensing, people fall detection, people counting, or people occupancy density estimation without privacy invasion.
(BM502-VSD) Vital Signs Detection	For a contactless and wearableless human Vital Signs Detection (VSD) with real-time Heartbeat Rate & Respiration Rate data, for range of 30cm ~ 90cm (about 1~3 feet); along with Status Indicator for sensing the presence of a person, as well as the measurement stability, and whether the person is present but without Vital Signs.
(BM502-POS) People-Counting Overhead Sensor	BM502-POS People-Counting Overhead Sensor mmWave EVM Kit operating along with a MacBook Pro running Python Code, that detects People movements in approx. 6m x 6m x 3m region with Tracking Data shown on screen.
(BM502-PC3) People Counting & Detection	For a wireless People Counting & Detection in 6 x 6 meter or 36 square meter area (or about 387.5 square feet), for various applications that require people sensing, people counting, or people occupancy density estimation without privacy invasion.



Copyright ©2025 Joybien Technologies Co., Ltd.
Joybien reserves the right to make changes to any products herein without further notice. Joybien assumes no liability arising out of the application or use of any product or circuit. Joybien’s products are not to be used in life support devices or systems if a failure of a Joybien product can reasonably be expected to cause the failure of that life support device or system, or to affect the safety or effectiveness of that device or system.

Note:

• "Python" is a registered trademark of the PSF.
• Please contact us at Joybien in advance for FD502 commercial application for mass production.
